Creating an Android Emulator


An Android emulator is an Android Virtual Device (AVD) that represents a specific Android device. You can use an Android emulator as a target platform to run and test your Android applications on your PC.

  • Using Android emulators is optional.
  • An Android emulator is installed by default during the RAD Studio installation.
    • We recommend that you install this emulator during product installation.
    • This emulator is used as the default target for an Android application, so you can easily create and run an Android application on your development system.
  • If you create your own Android emulator, consider creating an emulator for each Android device you want to support.
  • RAD Studio supports the following targets:
    • Android emulators that are version 4.0 or newer
    • Android devices that are ARM version 7 or newer
  • You cannot use an Android emulator on a Virtual Machine (VM). Although an emulator might run on a VM, the emulator will not run an application.
  • It is a well-known performance issue that Android emulators are extremely slow.

The installed Android emulator is named rsxe5_android, which uses the WVGA800 skin and Android 4.2.2.

Installing an Android System Image (Required)

Before you create an Android emulator, you need to install an Android system image that your emulators can use.

Note: If you installed the Android SDK and NDK during RAD Studio installation, a valid Android system image (such as Android 4.2.2 API 17) should already be shown as Installed in the Android SDK Manager. In this case, you do not need to install another Android system image.

Follow these steps:

  1. Start the Android SDK Manager (select Start | All Programs | Embarcadero RAD Studio | Android Tools).
  2. In the packages tree, locate and check the ARM EABI v7a System Image node within the first Android node in the list.
    For example: Android 4.2.2 (API 17) or Android 4.3 (API 18)
  3. Click Install 1 package. (Clear any checkboxes that were auto-selected.)
  4. In the Choose Packages to Install page, click Accept License, and then click Install to install the system image.
Creating an Android Emulator - Key Fields

Creating an Android Emulator Using the Android Virtual Device Manager

To create an Android emulator on your system, follow these steps:

  1. Start the Android SDK Manager (select Start | All Programs | Embarcadero RAD Studio | Android Tools).
  2. In the Android SDK Manager, select Tools | Manage AVDs.

  3. In the Android Virtual Device Manager, click the New button to create a new virtual device.
    Click New in Android AVD Manager

  4. In the Create new Android Virtual Device (AVD) dialog box, select an Android device to emulate, and enter the details describing the Android device you want to emulate. In order to run a FireMonkey mobile application, your Android emulator must meet the following requirements:
    1. In Target, select an Android SDK with an API level that is 17 or higher. The drop-down list contains your installed versions of the Android SDK.
    2. Under Emulation Options, check Use Host GPU.
    3. In Device, select the Android device to emulate.
    Tip: Emulating an older Android device like the Nexus S might be faster than emulating a newer, larger device like the Nexus 10.
  5. Click OK twice to create your new Android emulator.
  6. You can now view your emulator in the Android Virtual Device Manager.

RAD Studio lists your Android emulators in the Project Manager, within the Target node of the Android target platform node. See Using the Target Node.

Creating an Android Emulator Using the Command Line

You can create an Android emulator in the command window by entering a command such as this:

echo no | android -s create avd -n my_android -t 1

For the skin, you might want to add this option:

--skin WXGA800-7in

For more information, see the Android documentation.

Starting an Android Emulator

When the emulator is the current target platform, you do not have to start the emulator before running your Android app on the emulator. However, we recommend that you start your Android emulator separately, perhaps before you start RAD Studio. Emulators are notoriously slow to start and to run, so starting the emulator beforehand means that your app can get to the emulator more quickly.

The recommended way to start an Android emulator is by using the Android Virtual Device Manager, which can be started from the Android SDK Manager.

To start an Android emulator such as the default emulator installed in RAD Studio:

  1. Start the Android SDK Manager (select Start | All Programs | Embarcadero RAD Studio | Android Tools).
  2. In the Android SDK Manager, click the Tools menu and select Manage AVDs.

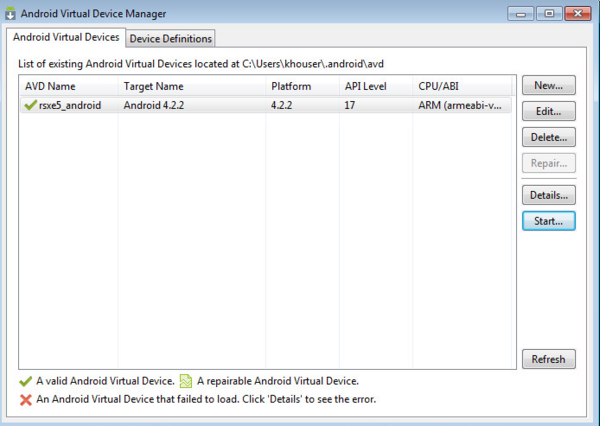

  3. In the Android Virtual Device Manager, select the emulator and click Start.

  4. Then click Launch on the Launch Options dialog box.
  5. Your emulator should now start (this might take five or ten minutes):

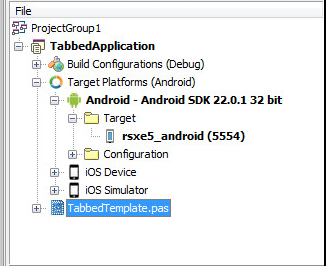

    In the Project Manager, your emulator should appear in the Target node of the Android target platform:

Tip: If the Project Manager does not show your running Android emulator as running, with the same icon as in the screenshot above, see Using the Target Node.

Your next step is to run an Android app on your emulator. In the Project Manager, ensure that the emulator's name is in boldface and the port number is indicated in parentheses (such as (5554)), indicating that the emulator is running and is the current selected target platform.

For more information, see http://developer.android.com/tools/devices/managing-avds.html.
